What a microburst looks like on NEXRAD

Updated: Aug 24, 2019

Check out this microburst caught on camera in the Raleigh, NC area. The important thing to notice is just how benign this looks underneath the cloud deck...lots of locations with blue skies in the distance.

https://twitter.com/i/status/1151556735406096385


Below is the dual-node signature you'll see on the NEXRAD radial velocity (Doppler) when a microburst is occurring. Green represents hydrometeors moving toward the radar site and red are hydrometeors moving away from the radar. The image below is time stamped at 1850Z, when in fact, the microburst began around 1845Z based on the camera's time stamp.

The dual-node signature is because the radial velocity can only see hydrometeors moving toward or away from the radar site. However, a microburst occurs in all directions, but the radar can't see hydrometeors moving tangential to the radar site. The velocity is essentially zero in these areas, hence the dual-node signature shown above.

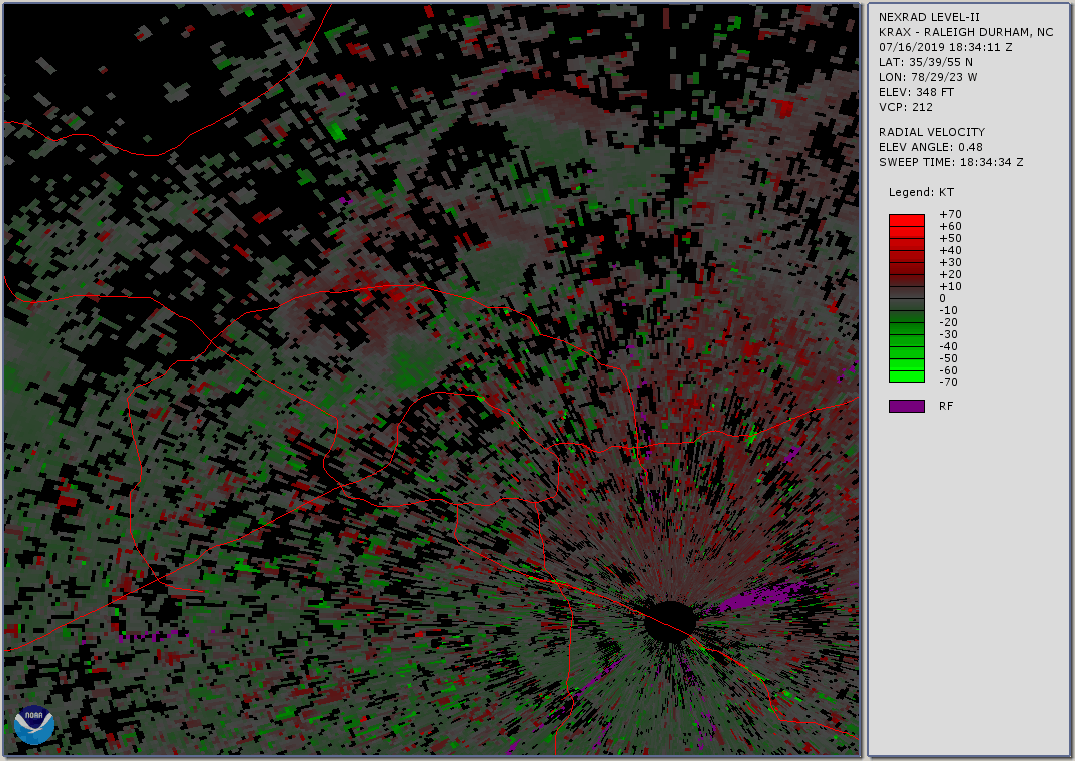

Below is the Doppler radial velocity loop of the event. Each frame in the loop is spaced at about 5 minutes apart. You can see how quickly the microburst occurs.

The important lesson here is that these microbursts are not typically generated by ominous-looking supercell thunderstorms that most pilots tend to avoid.  In fact, they are more likely to occur with deep, moist convection that may not have any lightning strikes and the area of weather can look very harmless and lure you in thinking it's safe. Never fly under deep, moist convection no matter how benign it looks!



Most pilots are weatherwise, but some are otherwise™


Scott Dennstaedt

Weather Systems Engineer

CFI & former NWS meteorologist
